What are the types of copper ball valves?

As a dedicated supplier of copper ball valves, I've had the privilege of witnessing the diverse applications and types of these essential components in various industries. Copper ball valves are renowned for their durability, corrosion resistance, and excellent performance, making them a popular choice for a wide range of fluid control systems. In this blog post, I'll explore the different types of copper ball valves available in the market and their specific applications.

Full Port Copper Ball Valves

Full port copper ball valves, also known as full bore ball valves, feature a ball with an opening that is the same size as the pipeline. This design allows for unrestricted flow of fluids, minimizing pressure drop and ensuring efficient operation. Full port valves are ideal for applications where high flow rates are required, such as in water supply systems, irrigation systems, and industrial processes. They are also commonly used in pipelines where the passage of solids or debris is possible, as the large opening reduces the risk of clogging.

One of the key advantages of full port copper ball valves is their ability to provide a tight seal when closed. The ball is designed to fit snugly against the valve seats, preventing leakage and ensuring reliable shut-off. This makes them suitable for applications where a complete stop of the fluid flow is necessary, such as in emergency shut-off systems or maintenance procedures.

Standard Port Copper Ball Valves

Standard port copper ball valves have a smaller ball opening compared to full port valves. The reduced opening size results in a slightly higher pressure drop, but it also makes the valves more compact and cost-effective. Standard port valves are commonly used in applications where moderate flow rates are sufficient, such as in residential plumbing systems, heating and cooling systems, and small-scale industrial applications.

Despite the smaller opening, standard port copper ball valves still offer good flow control and reliable shut-off capabilities. They are available in a variety of sizes and configurations to meet the specific requirements of different applications. Additionally, they are often used in combination with other valves or fittings to create complex fluid control systems.

Three-Way Copper Ball Valves

Three-way copper ball valves are designed to control the flow of fluids in three different directions. They feature a ball with a T-shaped or L-shaped bore, which allows for the diversion of the fluid flow between different ports. Three-way valves are commonly used in applications where the flow needs to be redirected or mixed, such as in heating and cooling systems, chemical processing plants, and water treatment facilities.

There are two main types of three-way copper ball valves: the T-port and the L-port. The T-port valve allows for the flow to be directed to two different ports simultaneously, while the L-port valve allows for the flow to be redirected from one port to another. The choice between the T-port and the L-port depends on the specific application requirements and the desired flow pattern.

Lockable Copper Ball Valves

Lockable copper ball valves are designed with a locking mechanism that prevents unauthorized operation of the valve. This feature is particularly important in applications where safety and security are a concern, such as in industrial plants, commercial buildings, and public facilities. Lockable valves can be locked in the open or closed position, ensuring that the fluid flow remains constant and preventing accidental or intentional valve operation.

The locking mechanism of lockable copper ball valves can be either a simple padlock or a more sophisticated key-operated lock. Some valves also feature a tamper-proof design, which makes it difficult for unauthorized individuals to bypass the locking mechanism. Lockable valves are available in a variety of sizes and configurations to meet the specific requirements of different applications.

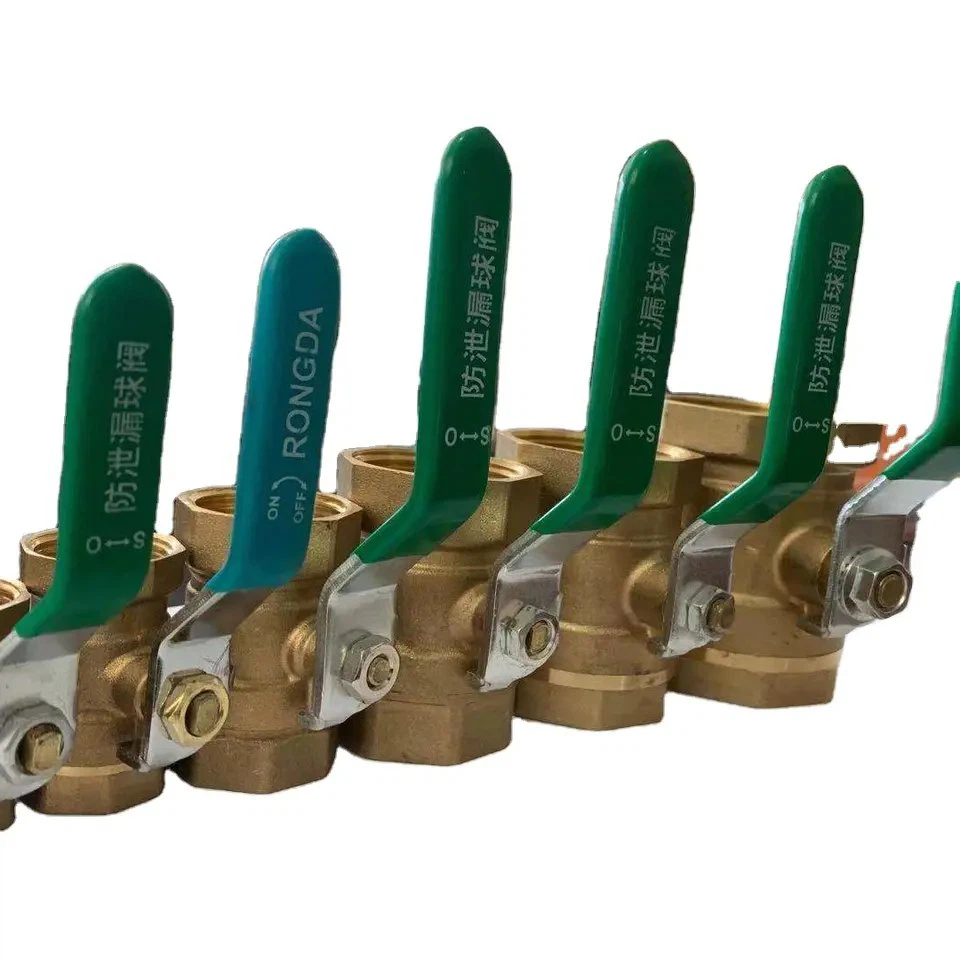

Gas Brass Ball Valve and Ball Valve For Gas

In addition to the above types, there are also specialized copper ball valves designed for use with gas applications. Gas Brass Ball Valve and Ball Valve For Gas are specifically engineered to meet the strict safety and performance requirements of gas systems. These valves are typically made from high-quality brass or copper alloy materials, which provide excellent corrosion resistance and durability.

Gas ball valves feature a tight seal to prevent gas leakage and are often equipped with additional safety features, such as a flame arrestor or a pressure relief valve. They are available in a variety of sizes and configurations to suit different gas applications, including natural gas, propane, and butane.

Mini Zinc Alloy Ball Valve

For applications where space is limited or a compact valve is required, Mini Zinc Alloy Ball Valve are an excellent choice. These valves are made from zinc alloy materials, which offer a good balance of strength, durability, and cost-effectiveness. Mini ball valves are commonly used in small-scale plumbing systems, laboratory equipment, and electronic devices.

Despite their small size, mini zinc alloy ball valves still offer reliable flow control and shut-off capabilities. They are available in a variety of sizes and configurations, including different connection types and end fittings, to meet the specific requirements of different applications.

Conclusion

In conclusion, copper ball valves come in a wide range of types and configurations to meet the diverse needs of different industries and applications. Whether you need a full port valve for high flow rates, a standard port valve for moderate flow control, a three-way valve for flow diversion, a lockable valve for safety and security, or a specialized valve for gas or mini applications, there is a copper ball valve available to suit your requirements.

As a supplier of copper ball valves, I am committed to providing high-quality products and excellent customer service. If you have any questions or need assistance in selecting the right copper ball valve for your application, please don't hesitate to contact me. I would be happy to help you find the perfect solution for your fluid control needs.

References

• ASME B16.34 - Valves - Flanged, Threaded, and Welding End
• ASTM B584 - Standard Specification for Copper Alloy Sand Castings
• ISO 5208 - Industrial valves - Pressure testing of valves
